◆PMW反轉功能

◆兼容并擴展DMX512(1990）協(xié)議信號

◆芯片輸入電壓：3.5V～24V

◆封裝形式：SOP16/DIP16

Specialty（DMX512AP）:

◆The max constant current support:60mA

◆The max output support voltage:24V

◆Supply voltage: 3.5V～24V

◆PWM reverse function

◆Signal transmission speed: 250kbps/500kbps

◆The EEPROM storages address

◆Regulable linearity electric current output：256 scale

◆ Signal cable Wiring: signal cable in parallel connection、address line in serial connection

◆Max loading capacity: Max 1365 chips in parallel connection.

◆Signal Format: DMX512(1990) agreement

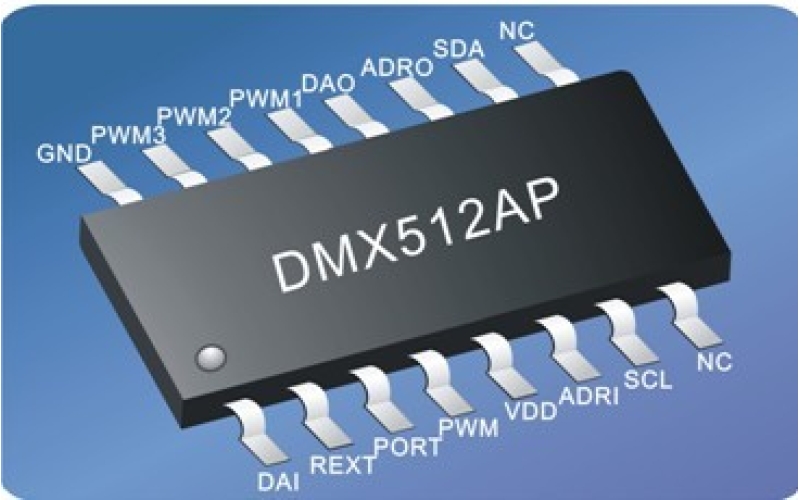

◆Package: SOP16/DIP16

◆HBM ESD>4KV

產(chǎn)品用途（DMX512AP）：

LED裝飾與照明/戶內(nèi)/戶外LED顯視屏

Application（DMX512AP）:

LED decoration and illumination

Indoor/outdoor LED display

產(chǎn)品速度對比（2013年8月）：

DMX512AP-N：250K-750K

DMX512AP：250K-450K

DMX512A-W：250K

DMX512A-PF：250-500K

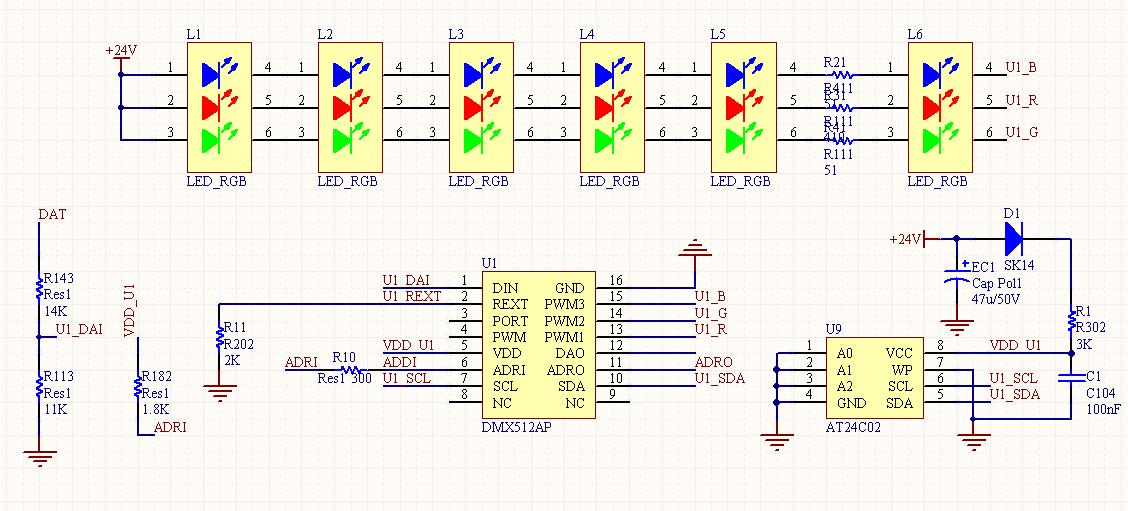

DMX512AP應用原理圖示例：
